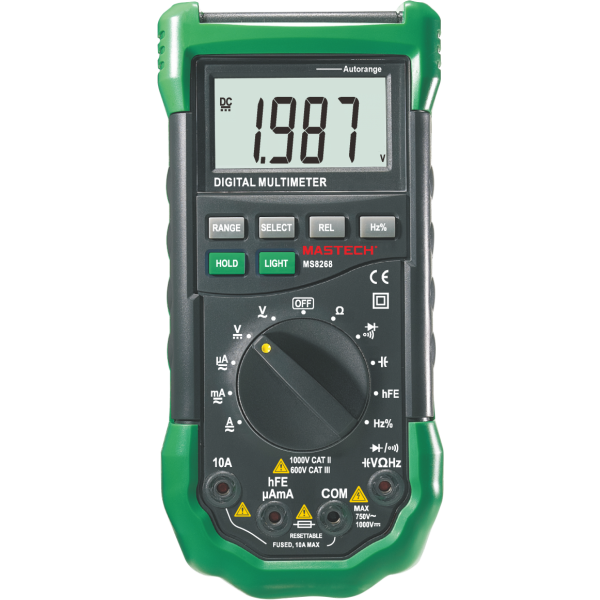

MASTECH MS8268 Digital Multimeter
The MASTECH MS8268 Digital Multimeter is an essential portable tool for electricians, technicians, and DIY enthusiasts. Designed for accuracy and user convenience, it offers a range of functions to meet diverse measurement needs.
Key Features:
- Multifunctional Measurement: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle.
- Auto and Manual Ranging: Offers flexibility and ease of use.
- Max Display: 4000 counts for clear readings.
- Data Hold: Allows users to freeze the displayed measurement for easier recording.
- Relative Measurement: Eliminate low resistance or impedance on the test leads during measurements.
- Max/Min: Maximum and minimum values can be held on the screen.
- Backlight: Easy to read in dim environments.
- Safety Certified: CAT II 1000V / CAT III 600V ratings for secure operation.
- Additional Features: Includes diode test, continuity buzzer, hFE transistor, sound & light warning, auto power off, and low battery display.
Specifications:
- DC Voltage: 400mV to 1000V
- AC Voltage: 400mV to 750V
- DC Current: 400μA to 10A
- AC Current: 400μA to 10A
- Resistance: 400Ω to 40MΩ
- Capacitance: 4nF to 200μF
- Frequency: 10Hz to 200kHz
- Duty Cycle: 0.1% to 99%
